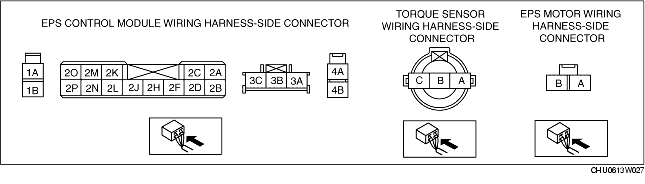

Terminal
|
Signal name
|
Connected to
|
Measured item
|
Measured terminal (measured condition)
|
Standard
|
Inspection item(s)
|
|
1A
|
Battery power supply
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (1A-battery)
• Fuse (60 A)
|
|
1B
|
Ground
|
Ground point
|
Voltage
|
Under any condition
|
1 V or less
|
• Wiring harness (1B-ground point)
|
|
2A
|
Ground
|
Ground point
|
Voltage
|
Under any condition
|
1 V or less
|
• Wiring harness (2A-ground point)
|
|
2B
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2C
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2D
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2E
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2F
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2H
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2J
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2K
|
CAN-L
|
-
|
Inspect under DTC inspection.
|
-
|
|
2L
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2M
|
CAN-H
|
-
|
Inspect under DTC inspection.
|
-
|
|
2N
|
-
|
-
|
-
|
-
|
-
|
-
|
|
2O
|
Ground
|
Ground point
|
Voltage
|
Under any condition
|
1 V or less
|
• Wiring harness (2O-ground point)
|
|
2P
|
Ignition power supply
|
Ignition switch
|
Voltage
|
Ignition switch is ON
|
B+
|
• Wiring harness (2P-ignition switch-battery)
• Fuse (15 A)
|
|
Ignition switch is OFF
|
1 or less
|
|
3A
|
Torque sensor
(Signal 2)
|
Torque sensor
|
Continuity
|
Terminal 3A-torque sensor terminal A
|
Continuity detected
|
• Wiring harness (3A-torque sensor A)
|
|
3B
|
Torque sensor
(Drive signal)
|
Torque sensor
|
Continuity
|
Terminal 3B-torque sensor terminal B
|
Continuity detected
|
• Wiring harness (3B-torque sensor B)
|
|
3C
|
Torque sensor
(Signal 1)
|
Torque sensor
|
Continuity
|
Terminal 3C-torque sensor terminal C
|
Continuity detected
|
• Wiring harness (3C-torque sensor C)
|
|
4A
|
EPS motor
|
EPS motor
|
Continuity
|
Terminal 4A-EPS motor terminal A
|
Continuity detected
|
• Wiring harness (4A-EPS motor A)
|
|
4B
|
EPS motor
|
EPS motor
|
Continuity
|
Terminal 4B-EPS motor terminal B
|
Continuity detected
|
• Wiring harness (4B-EPS motor B)
|
